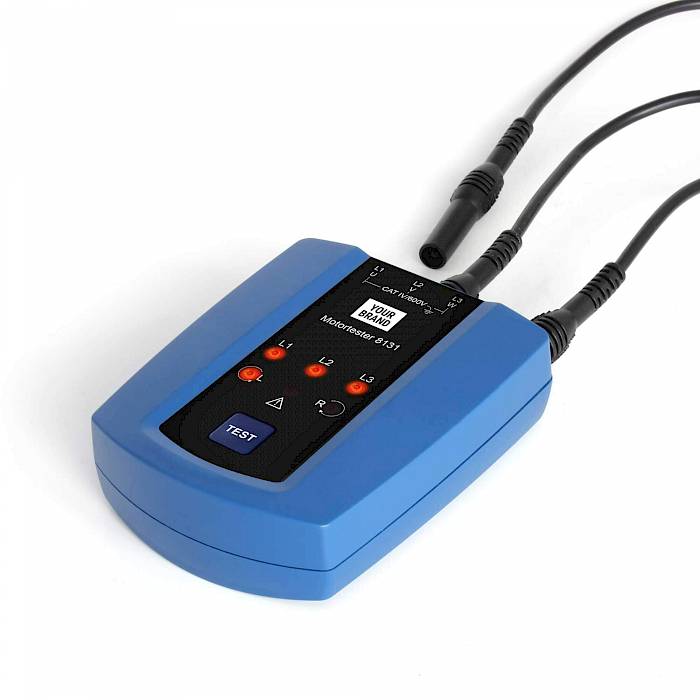

Motor tester and rotary field indicator CAT IV 600 V, LED version

Model number: 8131

Back to overview

Handy motor tester and rotary field indicator for voltages from 40 - 700 V (CAT IV 600V, LED)

Attributes

Rotary field indicator with phase indication
Identification of the connections (U, V, W) of a three-phase motor
Voltage range: 100...700 V AC; 50/60 Hz
Contact-free determination of the rotation direction of running AC motors, e.g. circulation pumps
Determination of right motor connection (motor wiring)
Display: LED
Warning in case of wrong wiring
Connected test leads
Crocodile clip for easy connection to the motor terminal board
Test probes for measuring in coupling plugs
CAT III 1000V, CAT IV 600V
